Author Topic: I'd like to optimize my well water system...help needed.  (Read 15334 times)

bjm999

  • Newbie
  • *
  • Posts: 33
    • View Profile
Re: I'd like to optimize my well water system...help needed.
« Reply #45 on: January 19, 2022, 10:57:25 AM »
I didn't rerun the test with the gauges swapped.  I can do that though.

Wow, down to 2 GPM....that's pretty good!  Would 2 GPM be enough to keep the pump cool or create any other issues?  Would I be able to take it up to 65 or 70 PSI while still having constant pressure down to 2 GPM...or maybe 3 GPM?  That may just be enough pressure to allow me to install a backflow preventer that is probably needed for my irrigation.
Report to moderator   Logged

Cary Austin

  • Inventor, Owner, Chief Cook and Bottle Washer
  • Administrator
  • Newbie
  • *****
  • Posts: 1599
    • View Profile
    • http://www.cyclestopvalves.com
Re: I'd like to optimize my well water system...help needed.
« Reply #46 on: January 19, 2022, 11:44:28 AM »
Yeah you will lose another 10 PSI through a backflow preventer.  Maybe required, but a vacuum breaker would not cause friction loss.

I will look up some pump curves.  The trick to getting a 5HP to stay cool at 1.7 GPM is finding one that has a good drop in horsepower when restricted with the CSV.  If the amps drop by 40%-50% the motor is de-rated enough to safely pump hot water, so it takes very little cool water to keep them happy.
Report to moderator   Logged

Cary Austin

  • Inventor, Owner, Chief Cook and Bottle Washer
  • Administrator
  • Newbie
  • *****
  • Posts: 1599
    • View Profile
    • http://www.cyclestopvalves.com
Re: I'd like to optimize my well water system...help needed.
« Reply #47 on: January 19, 2022, 11:51:21 AM »
See how this 5HP will drop to 2HP load at low flow?  This pump/motor needs very little cool water to keep it happy.
Report to moderator   Logged

bjm999

  • Newbie
  • *
  • Posts: 33
    • View Profile
Re: I'd like to optimize my well water system...help needed.
« Reply #48 on: January 21, 2022, 11:23:39 AM »
This makes a lot of sense.  That would be a nice setup and probably last a long time.  From my quick googling that's not going to be a cheap fix.  Is changing a well pump that may be 300 feet or more deep something the average homeowner could do?  I'm guessing a pro would charge several thousand to make that change.  May be hard to talk the wife into do that.  ;D
Report to moderator   Logged

Cary Austin

  • Inventor, Owner, Chief Cook and Bottle Washer
  • Administrator
  • Newbie
  • *****
  • Posts: 1599
    • View Profile
    • http://www.cyclestopvalves.com
Re: I'd like to optimize my well water system...help needed.
« Reply #49 on: January 24, 2022, 10:03:25 AM »
Yeah looks like one of those 45S50-12 pumps with a 5HP motor would cost almost 4K.  But your well pump cannot be 300' deep from those specs.  I would guess 150' or so.  I would be guessing another 1K for the labor if you can't do it yourself.
Report to moderator   Logged

bjm999

  • Newbie
  • *
  • Posts: 33
    • View Profile
Re: I'd like to optimize my well water system...help needed.
« Reply #50 on: January 24, 2022, 10:12:16 AM »
Are you guessing the depth to water is around 150ft or the actual pump depth is around 150ft?
Report to moderator   Logged

Cary Austin

  • Inventor, Owner, Chief Cook and Bottle Washer
  • Administrator
  • Newbie
  • *****
  • Posts: 1599
    • View Profile
    • http://www.cyclestopvalves.com
Re: I'd like to optimize my well water system...help needed.
« Reply #51 on: January 24, 2022, 10:14:57 AM »
The water level has to be around that depth, and the pump doesn't need to be set much deeper than that.  I am guessing less than 200'.
Report to moderator   Logged

bjm999

  • Newbie
  • *
  • Posts: 33
    • View Profile
Re: I'd like to optimize my well water system...help needed.
« Reply #52 on: January 24, 2022, 10:20:32 AM »
Yeah my understanding from the guy the installed the well, the depth to water is around 160 but due to water quality the pump is around 350 ft deep.  Would that make sense based on the data from this thread?
Report to moderator   Logged

Cary Austin

  • Inventor, Owner, Chief Cook and Bottle Washer
  • Administrator
  • Newbie
  • *****
  • Posts: 1599
    • View Profile
    • http://www.cyclestopvalves.com
Re: I'd like to optimize my well water system...help needed.
« Reply #53 on: January 25, 2022, 07:51:26 AM »
Maybe.  But that pump won't make 60 PSI to shut off from 350'.
Report to moderator   Logged

bjm999

  • Newbie
  • *
  • Posts: 33
    • View Profile
Re: I'd like to optimize my well water system...help needed.
« Reply #54 on: January 25, 2022, 08:02:59 AM »
Maybe that's the problem then.  Maybe the pump was just undersized.
Report to moderator   Logged

Cary Austin

  • Inventor, Owner, Chief Cook and Bottle Washer
  • Administrator
  • Newbie
  • *****
  • Posts: 1599
    • View Profile
    • http://www.cyclestopvalves.com
Re: I'd like to optimize my well water system...help needed.
« Reply #55 on: January 25, 2022, 01:10:15 PM »
No question the pump is undersized for what you want to do.  That has been the problem through all of this.
Report to moderator   Logged

bjm999

  • Newbie
  • *
  • Posts: 33
    • View Profile
Re: I'd like to optimize my well water system...help needed.
« Reply #56 on: January 05, 2023, 08:34:25 PM »
I'm back... ;D

So as you can see from page 3.  I installed the CSV12560-3 about a year ago.  I noticed about a month ago that I have a very slow leak.  Not sure how long I've had a leak since I don't look very often.

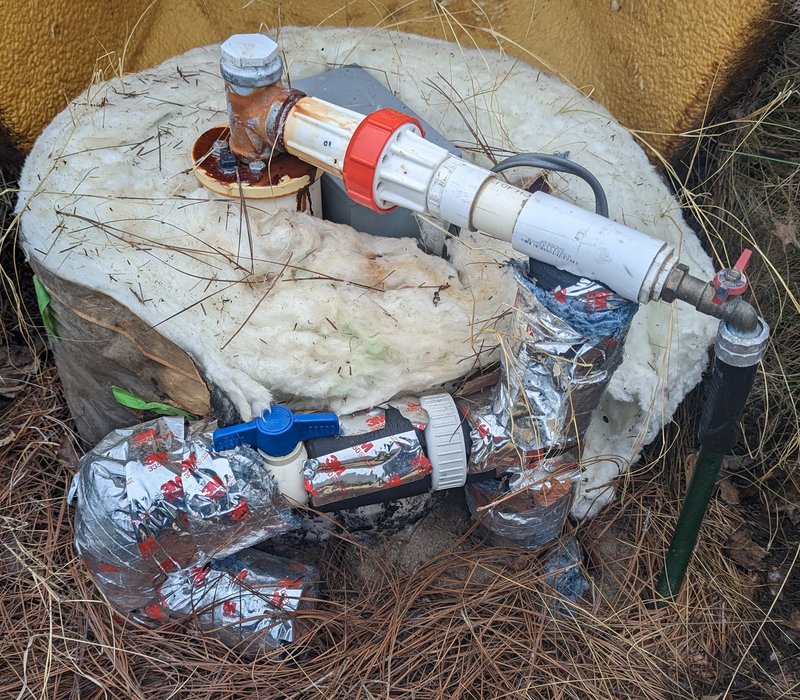

Here are some pics of my current situation...







You can see where a few drops have formed here circled in red.



I need to get the leak fixed so I can add heat tracing to the pipe and reinsulate it due to the cold weather.

So I'm guessing the valve just needs a little tightening.  Where should I try to tighten the valve (the white section in the left of the pics or the red ring?  Do you think it's safe to tighten it without a spare valve?

Thanks for your help!




Report to moderator   Logged

Cary Austin

  • Inventor, Owner, Chief Cook and Bottle Washer
  • Administrator
  • Newbie
  • *****
  • Posts: 1599
    • View Profile
    • http://www.cyclestopvalves.com
Re: I'd like to optimize my well water system...help needed.
« Reply #57 on: January 06, 2023, 08:16:55 AM »
Sorry for your problem.  Seeing wrench marks on the CSV125 and seeing it kind of mushroomed out on the end, I am afraid it was installed too tightly and the leak maybe from a crack in the plastic.  Being as it is only a year old, and even though it maybe installer error, we will send you a new valve under warranty to replace it.  Us a little teflon tape then add some teflon paste over that so you won't have to get it so tight next time.  Call our office, reference your order number or give them your name.  They will send you a new CSV125.  All I want is to know if it was cracked when you get the old one off please.
Thanks
Cary
Report to moderator   Logged

bjm999

  • Newbie
  • *
  • Posts: 33
    • View Profile
Re: I'd like to optimize my well water system...help needed.
« Reply #58 on: January 06, 2023, 09:00:54 AM »
Oh shoot.  I didn't realize it may be too tight already.  It didn't leak early on but I will certainly use teflon tape this time in addition to pipe dope.  Last time I only used pipe dope.  Thank you for replacing it!  I'll call the office now.

BTW, how many rounds of teflon tape should I use?  Thanks again!
Report to moderator   Logged

Cary Austin

  • Inventor, Owner, Chief Cook and Bottle Washer
  • Administrator
  • Newbie
  • *****
  • Posts: 1599
    • View Profile
    • http://www.cyclestopvalves.com
Re: I'd like to optimize my well water system...help needed.
« Reply #59 on: January 06, 2023, 10:03:13 AM »
It could be the short steel nipple that is leaking instead of the CSV?
