Recent Posts

1

Pumps, Wells, Tanks, Controls / Re: Booster Pump

« Last post by Cary Austin on March 31, 2025, 01:52:44 PM »

Yes, you can easily add a pump to boost the 44 PSI gravity supply to 60 PSI or whatever you want. But we would need to know the flow rate required by the "high flow" demands to size a pump.

2

Pumps, Wells, Tanks, Controls / Booster Pump

« Last post by Winesalot on March 29, 2025, 11:31:53 AM »

Here is my setup: Well pump feeds a 3800-gallon cistern on the high-elevation portion of our property, which is 100' in elevation above our commercial/residential building. The building is fed from the cistern with 2" white pipe, and I get the expected 44 psi at the building. The 2" pvc feed from the cistern is converted to a 1-1/2" Uponor PEX main header that runs the length of the building with tee's supplying all the various water needs.

I would like to boost the building's pressure to 60 psi. We have a commercial hot water dishwasher, and it just barely meets the minimum pressure required. (We Occasionally get a low-pressure error code.) We also find on our wine production crush pad that our garden hoses feel like they have a bit of a weak stream.

It seems logical that I would install a booster where the water comes into the building, where the pipe converts from 2" PVC to 1-1/2" PEX. The pump would only need to increase pressure by 20 psi but would need to meet the potential high-flow needs of a wine-tasting room, wine production space, and a three-bedroom residence.

I'd love to hear your thoughts.

3

Valve Tech / Re: Pressure between the pump and CSV

« Last post by Cary Austin on December 09, 2024, 08:53:17 AM »

With the CSV1A adding additional back pressure it can make the pump think the well is deeper.  So, you should be fine as is.  But if you get a chance to change it the 1HP motor is fine, even with a 3/4HP pump end.  You could put a 10 GPM, 3/4HP pump on the 1HP motor, or replace the 10 GPM, 1HP pump end with a 15-18 GPM, 1HP pump end.

4

Valve Tech / Re: Pressure between the pump and CSV

« Last post by Mike56 on December 06, 2024, 02:33:19 PM »

Thanks, Cary. The well guys put this in because that's all they had on their truck, saying it would be no issue. I suspected it wasn't right. They replaced a 3/4hp, 10gpm. I need to have this corrected to a 3/4 or even 1/2hp with this well setup, correct?

5

Valve Tech / Re: Pressure between the pump and CSV

« Last post by Cary Austin on December 06, 2024, 12:36:14 PM »

The back pressure to a Cycle Stop Valve is always whatever the pump can supply.  Looking at the curve for the 10 GPM, 1HP pump you mention it has a shut off head of 450'.  Subtracting the 40' for the static level leaves 410' or 177 PSI back pressure.  That is not too much for the CSV1A but is for the CSV125.

That pump is really designed for a well with water at 200' or more.  The back pressure from the CSV is needed to keep that pump from upthrusting, as it is in a much shallower well than it was designed for.

A 15 or 20 GPM, 1HP would be better suited for a 40'-60' well and would only have 80-120 PSI back pressure.

6

Valve Tech / Pressure between the pump and CSV

« Last post by Mike56 on December 06, 2024, 09:32:01 AM »

I've read a number of posts on the line pressure created by the CSV, no need to go into any details. My question is: With a 3/4hp pump the max pressure created in the line by the CSV will be X. Given an identical install, and the pump is now 1 hp, will the max pressure created by the CSV remain the same or will it increase? The 1 hp pump is this one: Franklin 1hp 10gpm 230v 3W 4" SS 4400 TRI Series FPS, static water is at 40', pump at 60'.

7

Applications / Re: plumbing question for csv

« Last post by Cary Austin on August 07, 2024, 08:58:30 AM »

If you have a tight fit and then tighten a union it can pull on the CSV.  If the pipe in the ditch after the CSV settles and drops, it can put the CSV in a bind by bending it.  The CSV1A is much stronger and impossible to plumb in a bind.  It is also much shorter and you would not have to double elbow around.  The CSV1A would just fit on the pipe before it goes underground.

8

Applications / Re: plumbing question for csv

« Last post by ps95 on August 06, 2024, 08:37:52 PM »

Not much room outside the well.  To install it there you may need to go straight out a foot or so with the CSV, then double elbow back to the pipe going underground.  It the pump is set on plastic pipe you could also install the CSV125 in the well, just under the well seal.  If it is steel pipe you would need the SS version CSVS125.

Hi, Cary, and thank you for responding! I am very new at this, so I hope I don't sound too dumb; however, I have been reading and looking at the pictures your other customers have posted. I can't find it again for the life of me, but was it you that said don't install in a bind? I'm trying to find out what that exactly means. Presuming it doesn't refer to sharp angles, I was thinking about using a few 45 elbows to 'wrap' it around the well housing so that when I put the well house back on, I won't hit any of the plumbing. The thing is heavy too so I want to do it as compactly as possible without rendering the CSV useless or leading to other problems.

9

Applications / Re: plumbing question for csv

« Last post by Cary Austin on August 05, 2024, 06:40:05 PM »

Not much room outside the well.  To install it there you may need to go straight out a foot or so with the CSV, then double elbow back to the pipe going underground.  It the pump is set on plastic pipe you could also install the CSV125 in the well, just under the well seal.  If it is steel pipe you would need the SS version CSVS125.

10

Applications / plumbing question for csv

« Last post by ps95 on August 05, 2024, 08:26:20 AM »

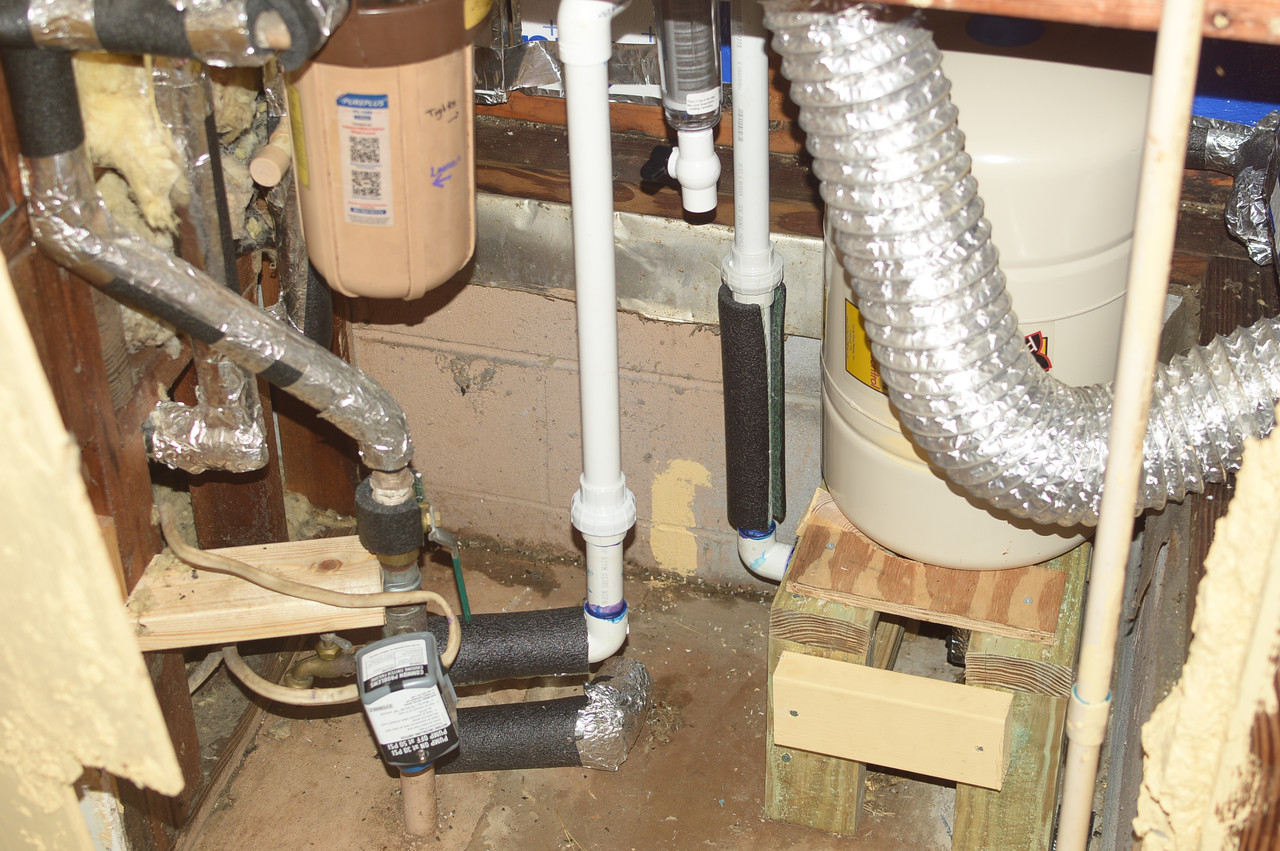

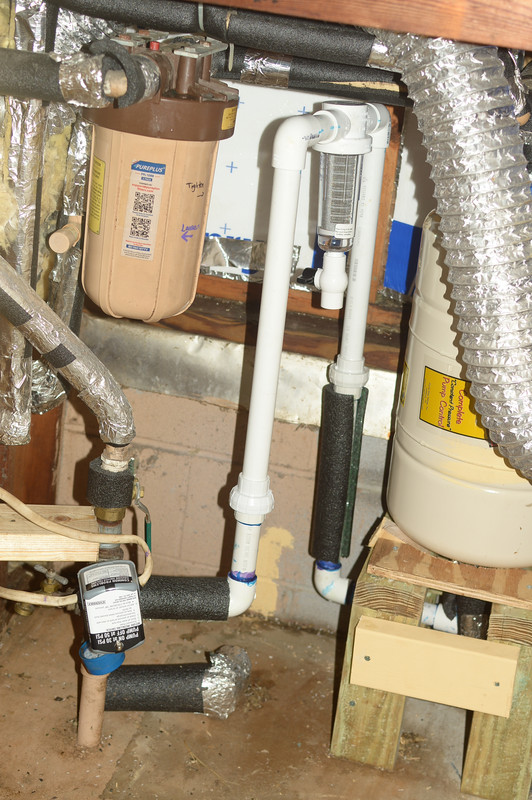

Greetings! I recently purchased a 40 psi cycle stop valve which I would like to fit somehow near my well. How should I plumb this in so it would work effectively for my setup?   https://i.postimg.cc/T3zNpGbw/DSC-0057.jpg

Thank you for any help and suggestions.
